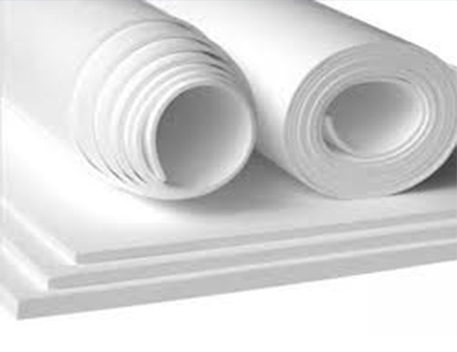

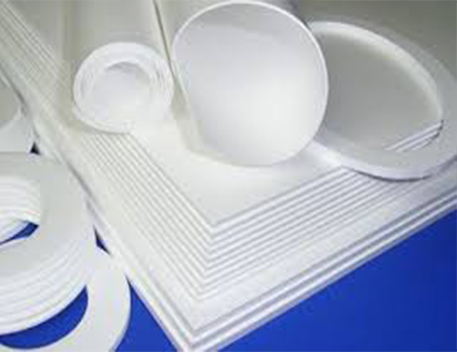

- Standard Size & Thickness : 1500 mm (W) * 1500 mm (L) * 0.5 mm (Thick), 1500 mm (W) 1500mm (L) * 1.0mm (Thick), 1500 mm (W)" 1500mm (L) x 1.5 mm (Thick), 1500mm(W)x 1500 mm (L)" 2.0 mm (Thick), 1500mm (W) x 1500 mm (L) " 3.0 mm (Thick), 1500 mm (W) " 1500 mm (L) - 5.0 mm (Thick), 1500 mm (W)" 1500 mm (L) . 6.0 mm (Thick)
- Made to oder : Specific Length, Thickness & Width available as per customers requirement

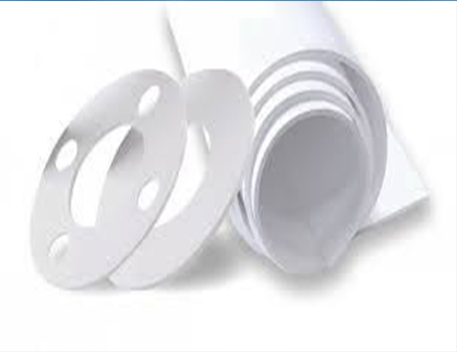

- Expanded PTFE :MultiTex Sheet is a high quality gasket sheet made of pure multidirectional expanded PTFE to cut or punch gaskets. In a special process PTFE is stretched in different directions and is so getting a very high strength length and cross. Creep tendency under force and temperature is considerable reduced compared to other PTFE gasket sheets. The soft material fits very well on uneven surfaces. Material with enough thickness can compensate even big gaps
of uneven flanges, as they appear on glass lined steel flanges or at corrosive damages.
- Pressure : Full Vaccum to 200 bar. Temperature -200 deg C to +230 deg C. Approvals / Certifications - BAM Tested for use with Oxygen. TA-Luft, US PDA, EC 1935/2004, TUV, USP Class 10 certification.
